Dellorto Needles

Part Number

E2265.**

Grouped product items
Product Name	Price	Qty
Dellorto Needle D36 2 in stock	£15.50
Dellorto Needle D38 3 in stock	£15.50
Dellorto Needle D41 0 in stock - Available to order	£15.50
Dellorto Needle D46 0 in stock - Available to order	£15.50
Dellorto Needle D48 1 in stock	£15.50
Dellorto Needle D50 1 in stock	£15.50
Dellorto Needle X5 0 in stock - Available to order	£15.50
Dellorto Needle X6 1 in stock	£15.50
Dellorto Needle X19 0 in stock - Available to order	£15.50
Dellorto Needle X24 0 in stock - Available to order	£15.50
Dellorto Needle X88 1 in stock	£15.50

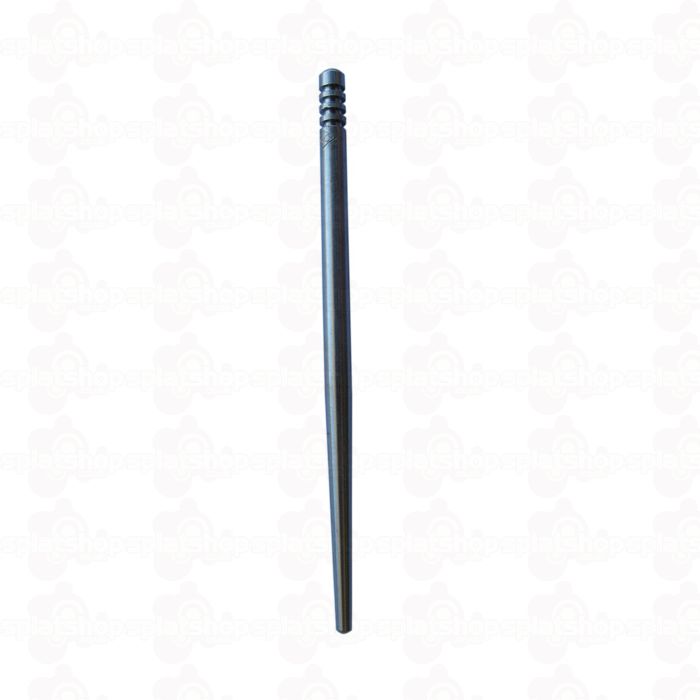

Needle for use in the Dellorto PHBL and VHST Carburettors. The needles have different diameters at either end and different taper lengths.

Details

Dellorto D and X type Needles arranged by the angle of the taper.

Needle	Diameter	Tip Dia	Taper Len	2nd Dia	Len 2	Angle	Sherco	GasGas
X68	2.45	1.8	28.14			1.32
X48	2.47	1.8	29			1.32
X47	2.5	1.8	30	2.35	15	1.34
X5	2.46	1.8	24			1.58
X25	2.5	1.8	25			1.60
X2	2.5	1.8	24			1.68
X44	2.46	1.8	22			1.72
X86	2.5	1.6	29			1.78
X76	2.52	1.6	29.36			1.80
X75	2.52	1.6	29			1.82
X13	2.5	1.8	22			1.82
X78	2.52	1.55	29.22			1.90
X64	2.5	1.5	30	2.31	22	1.90
X4	2.48	1.8	20			1.94
D21	2.5	1.8	20.2			1.98
D29	2.5	1.8	20			2.00
D44	2.48	1.6	24			2.10
X87	2.54	1.4	30			2.18
D28	2.5	1.8	18			2.22
X12	2.5	1.8	18			2.22
X3	2.46	1.6	22			2.24
X32	2.48	1.5	24			2.34
D49	2.5	1.4	26			2.42
X8	2.5	1.4	26			2.42
D47	2.52	1.4	26			2.46
D27	2.5	1.8	16			2.50
X34	2.48	1.2	29	2.34	15	2.52
X65	2.52	1	34			2.56
X31	2.48	1.2	28			2.62
X38	2.48	1.2	28	2.28	20	2.62
D37	2.5	1.4	24			2.62
X85	2.48	1	32			2.64
X18	2.5	1.2	28			2.66
X88	2.5	1.2	28			2.66
X33	2.5	1	32			2.68
X67	2.52	1	32			2.72
X61	2.46	1.5	20			2.74
X63	2.5	1.2	27			2.76
X1	2.48	1.2	26			2.82
X23	2.48	1.2	26			2.82
D36	2.5	1.4	22			2.86	R372	M09003136
X6	2.5	1.2	26			2.86
X7	2.5	1.5	20			2.86
X11	2.5	1.4	22			2.86
X24	2.5	1	30			2.86
X28	2.5	1.2	26	2.38	20	2.86
X62	2.5	1	30	2.31	22	2.86
X80	2.5	1.2	26			2.86
X22	2.48	1.2	25.5			2.88
X74	2.52	1	30			2.90
X72*	2.52	1.02	29.55			2.90
X73	2.52	1.02	29.55			2.90
X41	2.48	1	29	2.43	27	2.92
X71	2.48	1	29			2.92
X50	2.5	1.2	25			2.98
X52	2.52	0.98	29.46			3.00
X66	2.53	0.98	29.65			3.00
X69*	2.52	0.98	29.45			3.00
X84	2.52	0.98	29.45			3.00
X55	2.51	0.98	29.25			3.00
X82	2.53	0.98	29.45			3.02
X19	2.48	1	28			3.02
X79	2.51	1.01	28.17			3.06
X30	2.5	1	28	2.3	20	3.06
X83	2.53	0.98	28.85			3.08
X27	2.48	1.4	20			3.10
X17	2.5	1.2	24			3.10
X51	2.5	1.2	24	2.37	18	3.10
X60	2.54	1	28			3.16
D26	2.5	1.4	20			3.16
X10	2.5	1.4	20			3.16
X46	2.5	1.2	23			3.24
D50	2.5	0.8	30			3.24
D38	2.5	1	26			3.30
D35	2.46	1.4	18			3.38
X49	2.5	1.2	22			3.38
X54	2.5	1.3	20	2.35	20	3.44
D48	2.5	0.8	28			3.48		MT280390020
X16	2.5	0.8	28			3.48
D22	2.5	1.4	18			3.50
X9	2.5	1.4	18			3.50
D40	2.48	1	24			3.54
X81	2.48	1	24			3.54
D1	2.45	1.5	15.4			3.54
D39	2.5	0.95	25			3.56
D41	2.52	1	24.5			3.56
D46	2.5	1	24			3.58
X40	2.5	0.8	27	2.33	24	3.60
X29	2.5	0.6	30			3.62
X58*	2.5	0.6	30			3.62
X42	2.53	0.65	29.25			3.68
X70	2.52	0.65	29.09			3.68
X36	2.53	0.6	30			3.68
X37~	2.53	0.6	30			3.68
X20	2.42	1	22			3.70
X77	2.48	0.8	26			3.70
X15	2.5	0.8	26			3.74
X39	2.5	0.8	26	2.33	20	3.74
X56	2.5	0.8	26	2.36	22	3.74
D3	2.42	1.5	14			3.76
D23	2.46	1	22			3.80
X35	2.48	0.8	25	2.32	20	3.84
D34	2.5	1	22			3.90
X45	2.48	0.8	24.5	2.3	18	3.92
D25	2.5	1.4	16			3.94
X53	2.53	0.6	28	2.4	24	3.94
X14	2.5	0.8	24			4.06
X43	2.5	0.8	24	2.38	18	4.06
X59	2.5	1	21			4.10
D43	2.5	0.6	26			4.18
D45	2.5	0.6	26			4.18
D33	2.5	1	20			4.30
X21	2.5	1	20			4.30
X57	2.5	0.98	20.05			4.34
D42	2.46	0.6	24			4.44
D32	2.5	1	18			4.78
D31	2.5	0.6	22			4.94
D24	2.5	0.6	20			5.44
D30	2.5	0.6	18			6.04

More Information

More Information
Manufacturer	Sherco
Sherco Part Code	R372
GasGas Part Code	M09003136, MT280390020
Year	1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011
Model	80, 125, 200, 250, 290
