Dellorto PHBL Trials Carburettor
£179.95
0 In Stock - Available to order
Part Number
ER2841

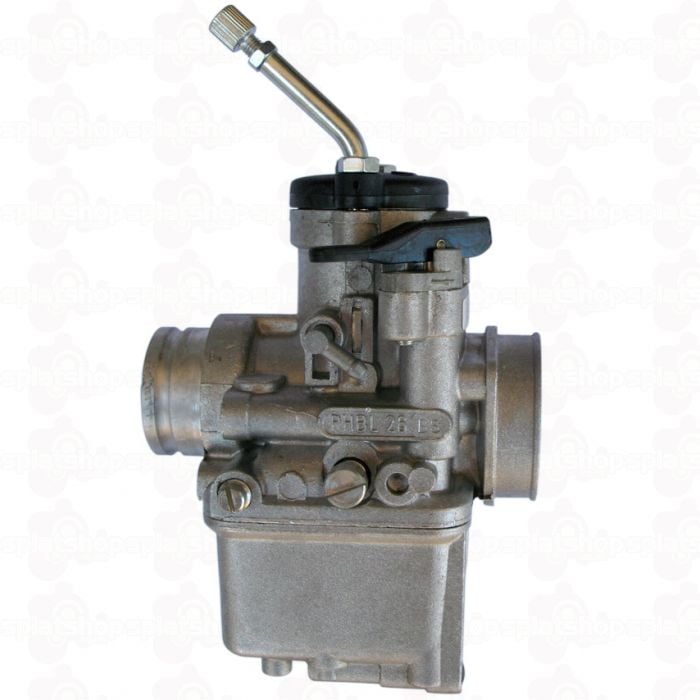

Dellorto PHBL 26BS Carburettor as found on most modern trials bikes.
26mm throttle bore diameter
38mm airbox manifold diameter
31mm inlet manifold diameter
Dellorto part number R2841
Standard Jetting:
60 Slide
D36 Needle
270K Atomiser
122 Main jet
30 Idle jet
60 Choke jet
200 Float valve
15760.5 Floats – 3.6 grams
26mm throttle bore diameter
38mm airbox manifold diameter
31mm inlet manifold diameter
Dellorto part number R2841
Standard Jetting:
60 Slide
D36 Needle
270K Atomiser
122 Main jet
30 Idle jet
60 Choke jet
200 Float valve
15760.5 Floats – 3.6 grams
| Manufacturer | Dellorto |
|---|---|
| Sherco Part Code | M020 |
| GasGas Part Code | MT280290000 |
| Year | 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2010 |
| Model | 80, 125, 200, 250, 290 |
