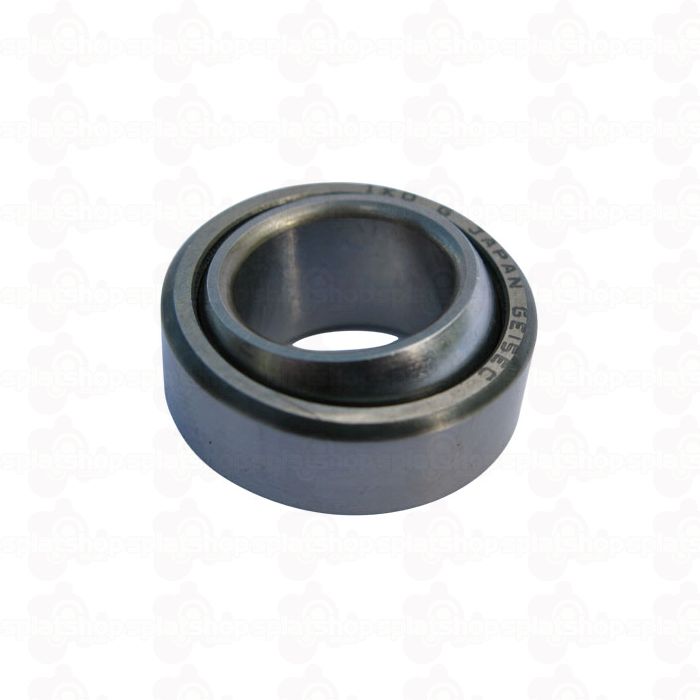

Spherical Bearing GE15C 15x26x12 - Sherco, Scorpa, EM, Montesa
Rose joint bearing to fit in the Olle & R16V rear shock absorber, also known as Spherical bearing.
This does not come with needed spacer bushings and seals, these are very difficult to remove but may possibly be reused if removed without damage.
Bearing dimensions:
Outer Diameter 26mm
Inner Diameter 15mm
Inner width 12mm
Outer width 9mm
Fits:
Montesa Cota 4RT standard bike from 2014 onwards
Sherco trials bikes from 2006 to 2019 (only on the bike with the R16V or Olle shocks, some of the Cabestany, Factory and Racing models used a different shock)
Scorpa Twenty 2014 onwards (standard model only with the R16V shock)
Electric Motion EM5.7 Lite, Sport, Escape.
TRS One (standard model only with the R16V shock)
Jotagas
Beta Rev 80 (21.9mm spacers)
Manufacturer | Bearings |
---|---|
Sherco Part Code | 1118, 1685 |
Montesa / Honda Part | 91074-NN4-J10 |
EM Part Code | TL01J-30412-00-00, TL01J-30411-00-00 |
TRS Part Code | 70503 |
Year | 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019 |
Model | 80, 125, 250, 290, 300, 320 |
-
