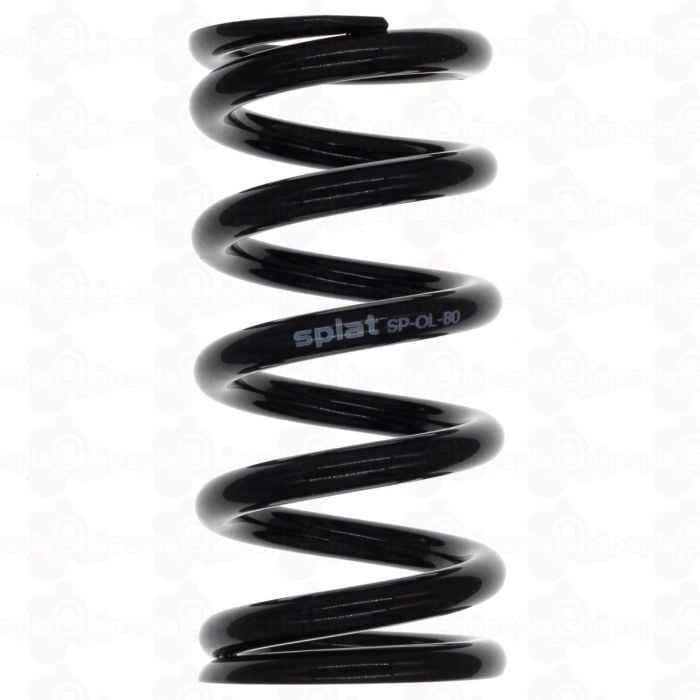

Splat - Olle R16V Rear Shock Spring
These high-quality springs are designed specifically for Olle & R16V rear trials shocks, ensuring a perfect fit.
Each batch undergoes rigorous testing post-manufacturing to guarantee the spring rate is within +/- 2.5% of the rated stiffness, significantly surpassing the British standard of +/- 10%.
Crafted from premium Chrome Silicon steel (54SiCr6), the springs are cold coiled using CNC machinery, then heat-treated and shot-peened to relieve residual stress. The ends are closed and ground flat. For durability and aesthetics, they are zinc phosphate coated for rust protection and epoxy powder coated in black.
Please refer to the table below to select the correct spring for your weight. This is a good starting point, but most riders could comfortably use one softer or one stiffer. Using a softer spring with more preload will provide a more lively response, while a stiffer spring with less preload will offer greater stability.
Riders of a very high standard (European/World Championship level) tackling massive steps and drops may prefer an even stiffer spring.
Sherco 2006 to 2011
Beta Evo with Olle (after market shock) or R16V shock (Factory models)
Beta Sincro 2026 R16V
Montesa 4RT Std 2014 to present
TRS One Std 2016 to present
Jotagas Jgas
Electric Motion EM 5.7 Epure with Olle or R16V shock
| Spring Stiffness | 55N/mm | 63N/mm | 70N/mm | 80N/mm | 90N/mm | 100N/mm |
| Rider Weight | 58 kg | 70 kg | 80 kg | 95 kg | 110 kg | 124 kg |
| Stones | 9 | 11 | 12.5 | 15 | 17.5 | 19.5 |
| Pounds | 125 lbs | 155 lbs | 175 lbs | 210 lbs | 240 lbs | 275 lbs |
Sherco 2012 to 2021 with the R16V shock (Racing models)
| Spring Stiffness | 55N/mm | 63N/mm | 70N/mm | 80N/mm | 90N/mm | 100N/mm |
| Rider Weight | 64 kg | 77 kg | 88 kg | 104 kg | 120 kg | 136 kg |
| Stones | 10 | 12.0 | 14 | 16.5 | 19 | 21.5 |
| Pounds | 140 lbs | 170 lbs | 195 lbs | 230 lbs | 265 lbs | 300 lbs |
Montesa 4Ride
| Spring Stiffness | 55N/mm | 63N/mm | 70N/mm | 80N/mm | 90N/mm | 100N/mm |
| Rider Weight | 47 kg | 57 kg | 67 kg | 80 kg | 93 kg | 107 kg |
| Stones | 7.5 | 9 | 10.5 | 12.5 | 14.5 | 17 |
| Pounds | 105 lbs | 125 lbs | 145 lbs | 175 lbs | 205 lbs | 235 lbs |
Approximate dimensions of these springs:
-
Inside diameter: 44mm
-
Outside diameter: mm (ranges on stiffness)
-
Length: 130mm
| Manufacturer | Splat Products |
|---|---|
| Sherco Part Code | 1760, 3645, 3545 |
| Beta Part Code | 007.33.097.00.53 To Fit: 007.33.088.80.00, 008.33.004.80.00, 007.33.094.80.00, 008.33.005.80.00, 007.33.111.80.00, 008.33.006.80.00, 007.33.119.80.00, 008.33.007.80.00 |
| JotaGas / JGas Part | To fit: 0502351, T30C000501 |
| Scorpa Part Code | 3545 |
| Montesa / Honda Part | 52401-NN4-J10 |
| EM Part Code | TL01K-30402-00-00, TL01J-30401-R3-ASM, TL01J-30401-R1-ASM, TL01J-30401-R2-ASM |
| TRS Part Code | 70504 |
