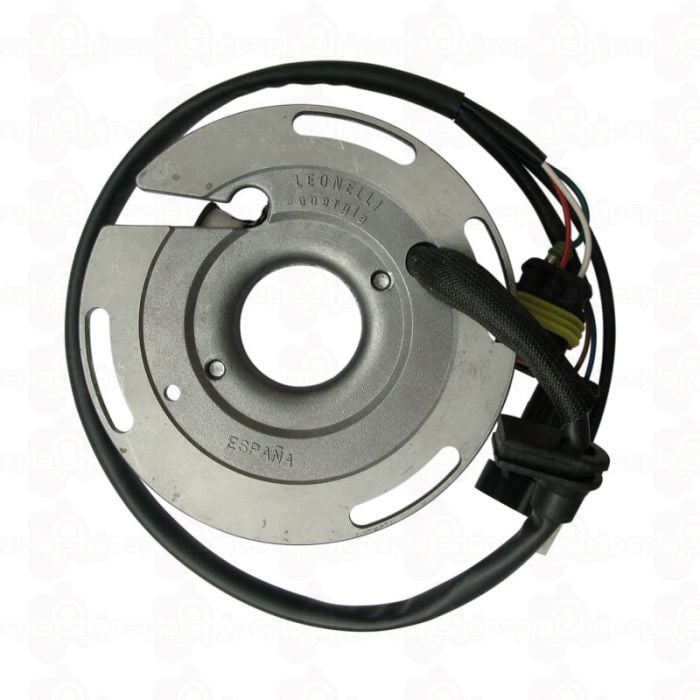

Repaired Stator - Sherco - 2004 to 2007
£0.00
Out of stock
Part Number
USTRnew
We no longer offer this service, to have your stator repaired, please contact Steve Hardaker of UK Motoplat - Bradford Ignitions
For more information please visit uk-motoplat.com
Please see info below for testing.
For more information please visit uk-motoplat.com
Please see info below for testing.
Testing and checking your Sherco stator plates, only applicable to the Leonelli stators from 2002 to 2007.
The trigger, using the diode check mode on a multi meter, you should get reading something like this, don't worry about exact numbers if it is somewhere in the same region.
Using the red lead to the plug terminals and black to earth.
Blue no reading (sometimes shown as 1 or error)
Brown 1000 to 1600
Black 1050 to 1650
Using the leads the other way around i.e. black lead to the coloured wires, red to earth.
Blue 600 to 730
Brown 650 to 770
Black 650 to 770
Also test the resistance's of the other coil wires, leads either way around.
White to red 95 ohms
Red to green 550 ohms
Green to white 640 ohms
Manufacturer | Leonelli |
---|---|
Sherco Part Code | M397, M243 |
Year | 2004, 2005, 2006, 2007, 2009 |
Model | 125, 200, 250, 290 |
