XiU-rdi - Kevlar Pro Rider 4 Disc Clutch Pack - GasGas Pro 02 on, Vertigo 21 on, Sherco 17>22, Scorpa 17>22, EM 20 on
To fit:
Gas Gas Pro, Racing, Raga and Factory models from 02 onwards
Vertigo trials bikes 2021 onwards
Sherco trials bikes 2017 to 2022
Scorpa trials bikes 2017 to 2022
Electric Motion Epure Race 2020 onwards
Pack thickness: 9.90mm
Important Note: Your clutch release fingers, need to be modified in order to assembly this special 4 discs clutch pack. Please see below images on how to modify your clutch releases 10 units.
This special kit is designed to offer the maximum torque control of your engine.
By using 3 very special 1,00mm steel plates and combined with 4 Kevlar compound friction plates (one extra of each than normal), this kit is able to transfer much more torque and heat and also make easier to cool the discs through higher oil flow.
Due to the thinner plates this pack can be assembled on the original stock clutch hub with the rest of stock components. The special thin steel plates are made by wire cutting.
Replaces: 22310-XGF-0003
IMPORTANT PRO RIDER SPECIAL STEP

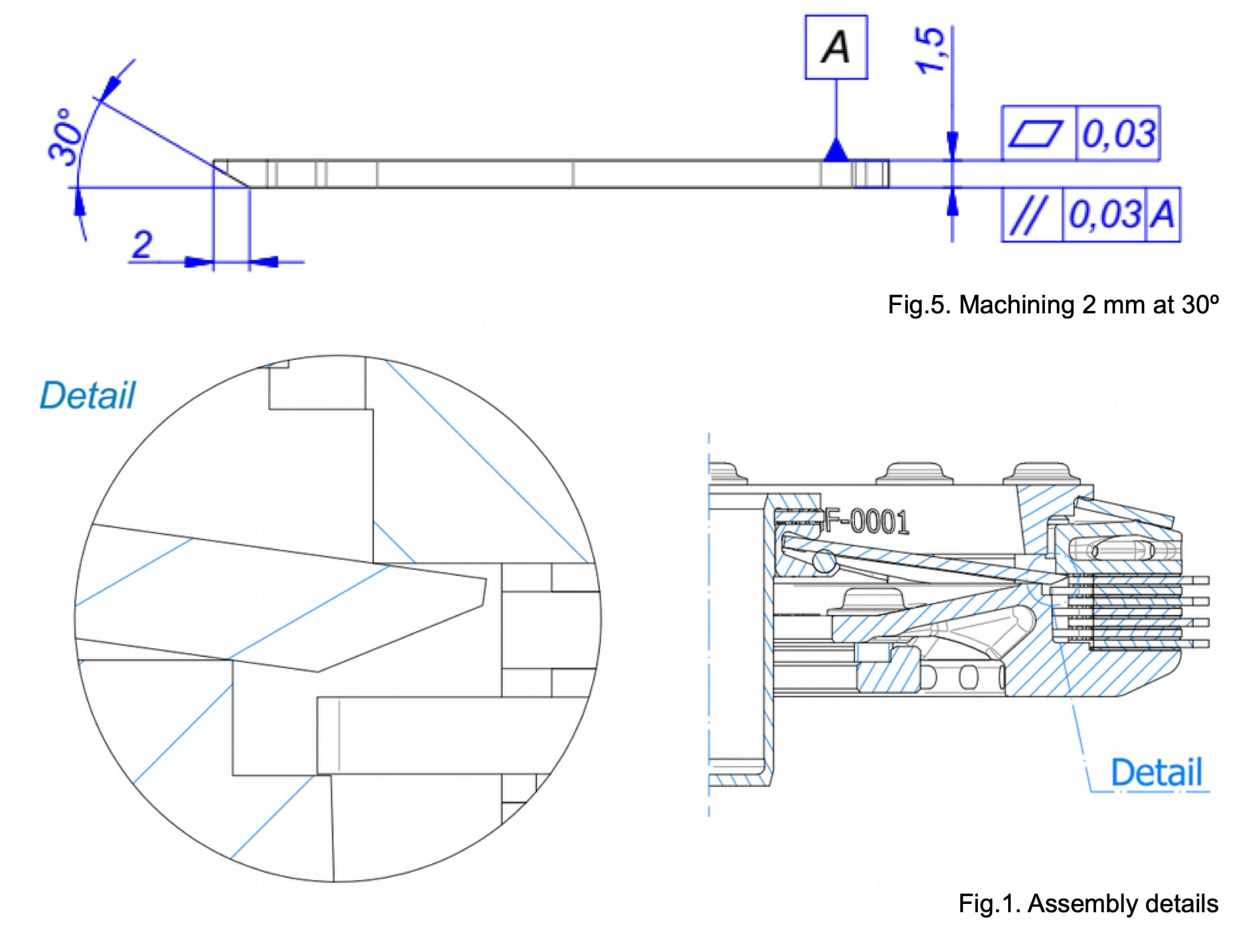

Your clutch release fingers need to be modified in order to assembly this special 4 discs clutch pack. Please follow below images to modify your clutch releases 10 units. Even old versions of our XiuRDi Clutch release kit needs to make this machining process. In other case your clutch system won’t work properly.
Manufacturer | XiU-rdi |
---|---|
Sherco Part Code | 6342 |
GasGas Part Code | MT280432055, MT22130CT-CSV-1 |
Scorpa Part Code | 6342 |
EM Part Code | TC02P-50500-00-00 (part of TC02P-50500-00-00) |
Vertigo Part Code | V-1888 |
Year | 2017, 2018, 2019, 2020, 2021, 2022, 2023 |
Model | 125, 250, 280, 300 |
